The Pipe Clamp range is a new modular system used by various industries due to its versatility. The range allows for many combinations for the system to be used across many applications. The Pipe Clamp system is cost-effective compared to traditional welded systems and is reconfigurable, allowing the products to be relocated and reused.
Benefits of using Pipe Clamps:
- Modular system allowing for customised solutions
- Used across many applications
- Cost-effective compared to welded systems
- Easy to design and simple to install
- Dual coating for durable corrosion resistance – electroplated over a galvanised finish
- A powder-coated finish is also available
- Reconfigurable – can be disassembled and reassembled
- Weldless – no hot works permit required
- Compatible with the use of 40NB pipe (48mm outside diameter)
- Vibration resistant.
Applications
Suitable applications include:

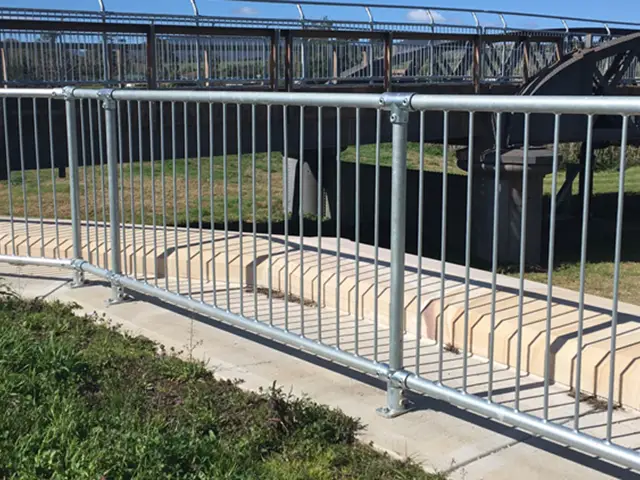

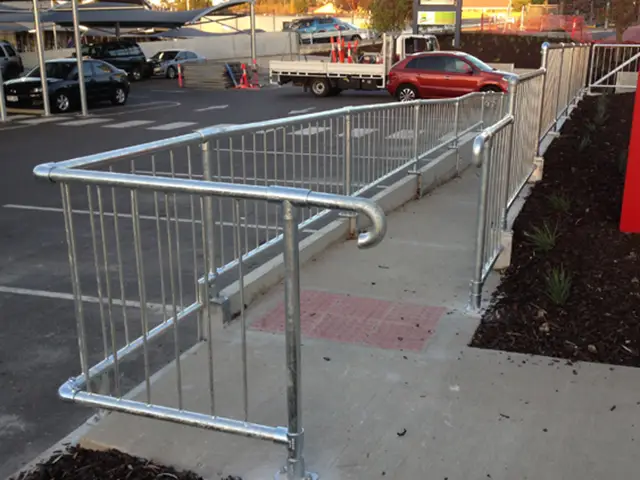

- Barriers and Handrails
- Balustrades

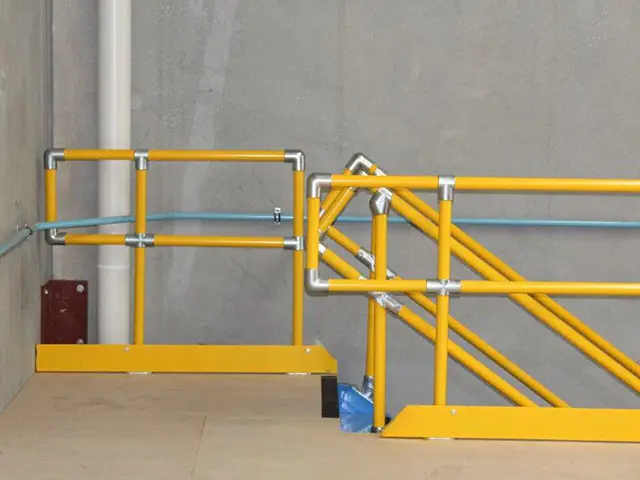

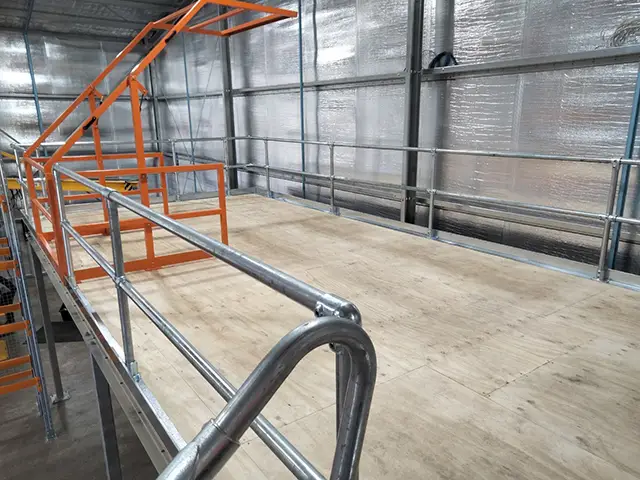

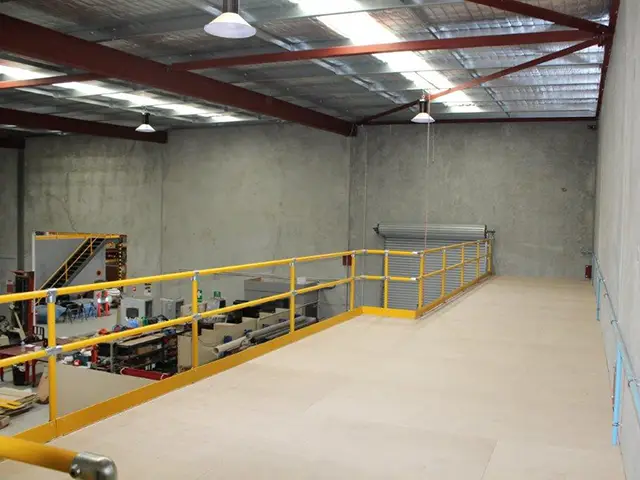

- Handrails for Mezzanine floors & staircases
- Permanent or temporary guard rails
- Playground equipment
- Sports goals
- Shopping trolley bays
- Agriculture enclosures.
Technical Information
- Maximum post spacings is 2m
- Grub screws must be tightened to 39Nm
- Fittings should be assembled with grub screws pointing downwards if possible to minimise water retention.
- Do not weld or cut fittings
- 40NB x 3.2mm galvanised pipe is recommended for all outdoor installations
- Fittings are not suitable for scaffolding
- When installed as a handrail, the knee rail should not be set higher than 560mm.
